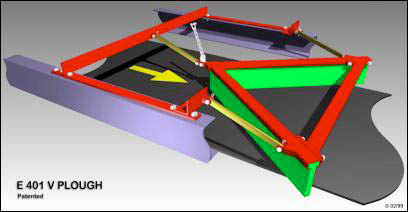

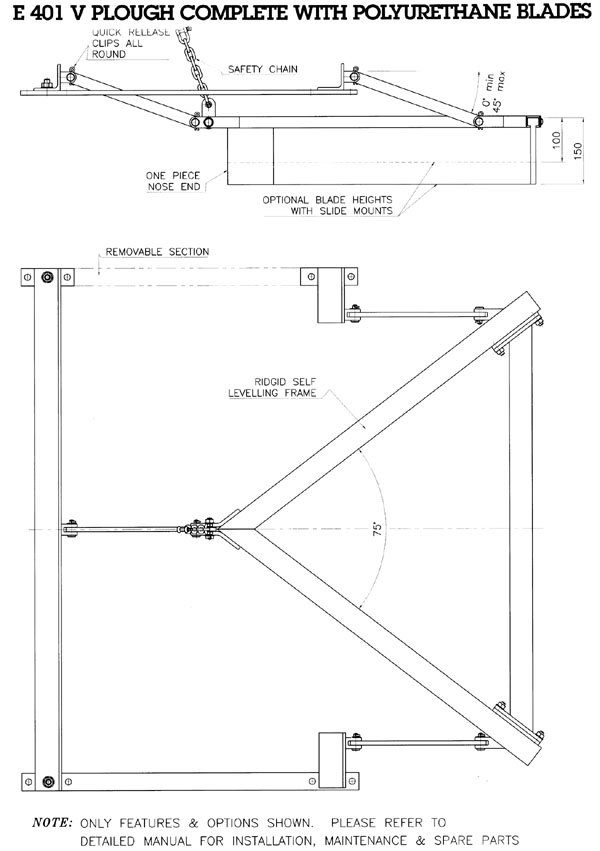

E401 V-Plough (view diagram)

APPLICATIONS:

• The Brelko V-Plough is designed to be easily installed in a trailing configuration on the inner surface of a conveyor belt return strand just before any nip position to remove and thus prevent any material which has spilled onto the inner surface being carried into the nip.
• Where material can only be discharged to one side of the conveyor belt use the Brelko E501 angle plough.

FEATURES:

• Unique track mounted scraping blade facilitates easy and quick blade change.
• Parallel tri-link mounting allows the plough to move freely thus maintaining contact with the belt.
• Specially formulated PU blades ensure maximum blade life and minimum belt wear.
• Unique bolted assembly results in compact packaging for easy transport and installation.
