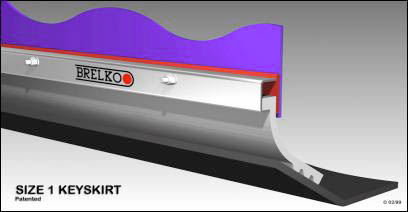

Size

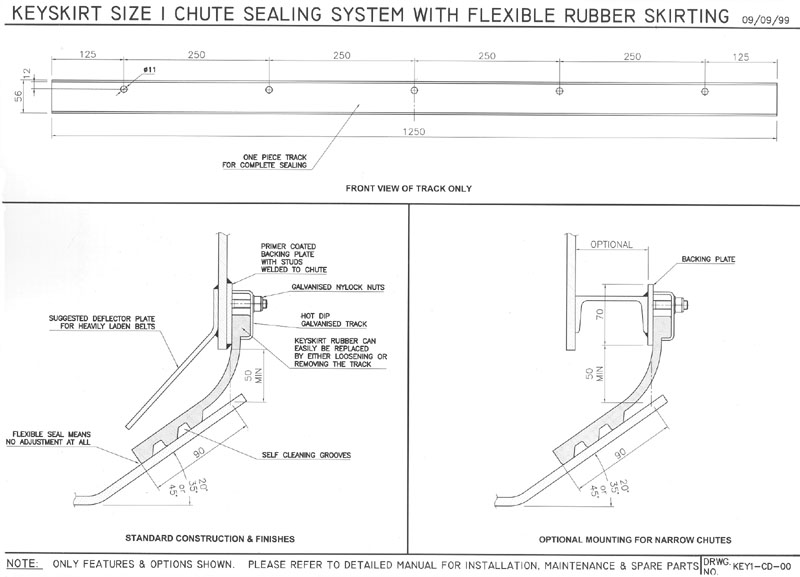

1 Keyskirt (view
diagram)
APPLICATIONS:
- An
effective chute sealing system designed to control
material spillage at conveyor load areas.
- Suitable
for relatively light belt conveyor systems narrower
than 900mm carrying material less than 75mm particle
size.
- Also
available in white food grade rubber and stainless
steel mounting components.
FEATURES:
- Patented
mounting track system results in simple installation
and subsequent skirt rubber replacement.
- Self
cleaning grooves trap spillage allowing it to be carried
away by the belt.
- Low
contact area reduces wear and friction.
- No
adjustment required.
- Continuous
flexible seal accommodates belt movement.
|
Size

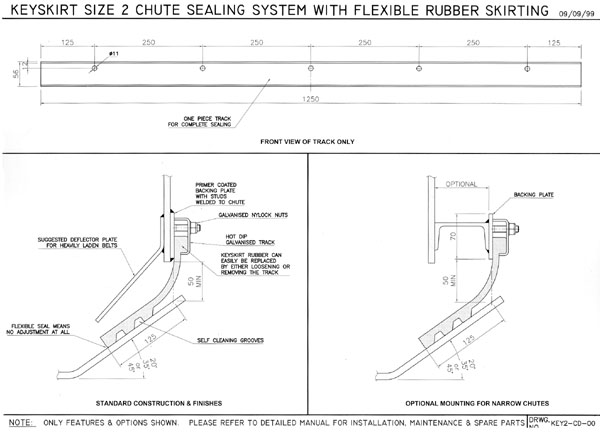

2 Keyskirt (view
diagram)
APPLICATIONS:
- An
effective chute sealing system designed to control
material spillage at conveyor load areas.
- Suitable
for all belt conveyors from 900mm belt widths upwards
carrying material of less than 75mm particle size.
FEATURES:
- Patented
mounting track system results in simple installation
and subsequent skirt rubber replacement.
- Self
cleaning grooves trap spillage allowing it to be carried
away by the belt.
- Low
contact area reduces wear and friction.
- No
adjustment required.
- Continuous
flexible seal accommodates belt movement.
|
